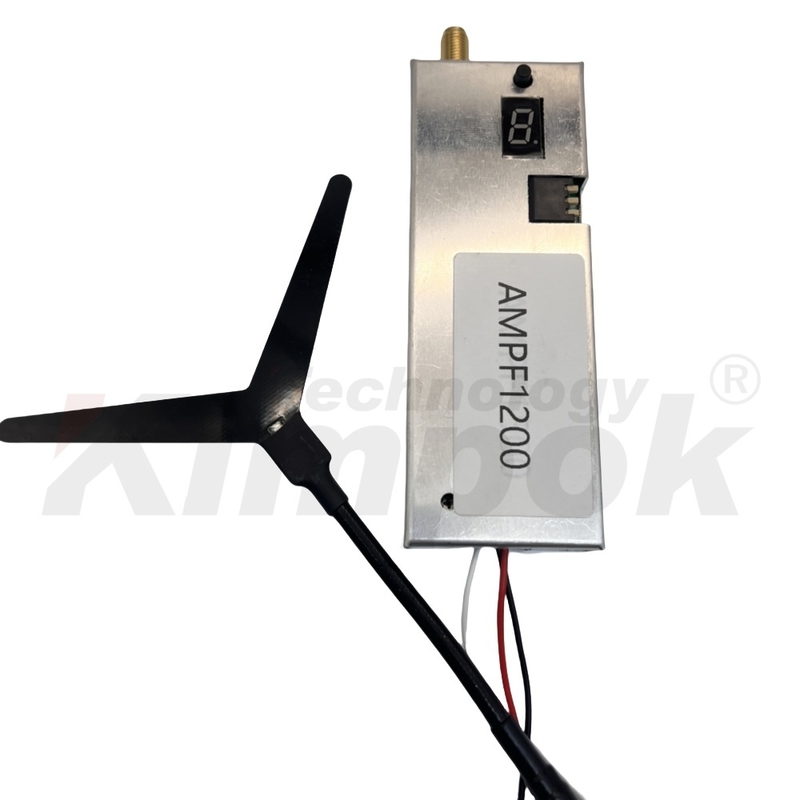

1.2GHz FPV Video Transmitter 5W Power Output 10-50km Range with Delay Function 1.2GHz VTX Accessory

Name: 1.2GHz FPV Video Transmitter 5W Power Output 10-50km Range with Delay Function 1.2GHz VTX Accessory
Brand: Kimpok Technology Co., Ltd
SKU: AMPF1200
Price: 145.00 USD
Availability: InStock

製品詳細:

Place of Origin:	China
ブランド名:	Kimpok
証明:	CE Cerfication
Model Number:	AMPF1200

詳細情報

Place of Origin:

China

ブランド名:

Kimpok

証明:

CE Cerfication

Model Number:

AMPF1200

Power:

33-35 dBm

Voltage:

22-24V

Current:

≤ 0.7 A

Output Interface:

SMA - F

Image transmission distance:

10-50Km

ハイライト:

High Light

ハイライト:

1.2GHz FPV video transmitter

5W power VTX accessory

10-50km range FPV transmitter

取引情報

Minimum Order Quantity:

価格:

交渉可能

Packaging Details:

International standard packing

Delivery Time:

3-7 work days

Payment Terms:

L/C,Western Union,Paypal

Supply Ability:

5,000 pieces per month

製品説明

1.2GHz FPV Video Transmitter 5W Power Output 10-50km Range with Delay Function

Key Specifications

Attribute	Value
Power	33-35 dBm
Voltage	22-24V
Current	≤ 0.7 A
Output Interface	SMA - F
Image transmission distance	10-50Km

Product Features

1.2GHz frequency band: Provides stable signal transmission with strong anti-interference capabilities in complex environments, reducing signal noise and interruptions for continuous FPV flight support.
5W power output: Enables smooth 10-50km long-distance transmission (depending on environmental factors) for expanded flight range exploration.
Delay function: Adjustable signal transmission delay allows for precise operation response in high-speed crossing and obstacle avoidance scenarios.

Technical Specifications

NO	Index	Requirements
1	Frequency	1040M, 1080M, 1120M, 1160M, 1200M, 1240M, 1280M, 1320M, 1360M, 1400M
2	Power	33-35 dBm
3	Voltage	22-24V
4	Current	≤ 0.7 A
5	Size	98.7 × 37 × 14 mm (Excluding output connector)
6	Output Interface	SMA - F
7	Power supply interface	Red, yellow, black 150 MM silicone wire
8	Delay switch	A: 20 seconds, B: 40 seconds, C: 80 seconds
9	Image transmission distance	10-50Km
