| Place of Origin: | China |
| ブランド名: | Kimpok |
| 証明: | CE |
| Model Number: | KP-T5825 |

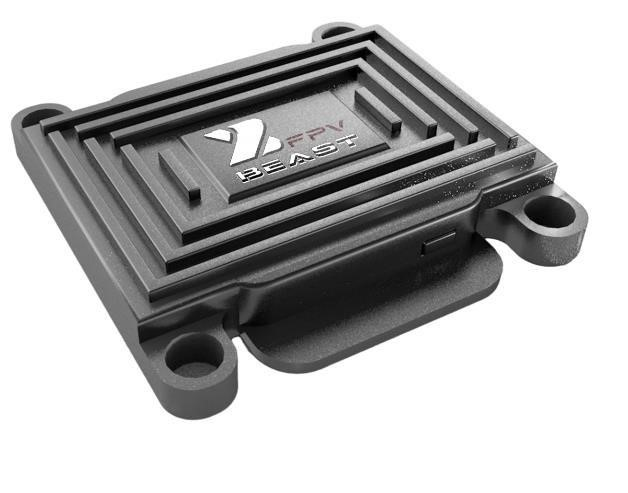

4.9G 5.8G 2.5W VTX UAV Video Transmitter Long-distance 20km Video Transmission FPV VTX for RC Drone
1.Video transmitter parameters
|
Working voltage
|
7-36V |
|
Current consumption
|
≤450mA@12V, 800mW ≤850mA@12V, 2500mW |
| Output power | PIT/25mW/400mW/800mW/1500mW/2500mW |
| Frequency range | 4.9GHz – 5.8GHz |
| Number of channels | 64CH |
| Antenna connector | MMCCX |
| Video format | NTSC/PAL |
| Video transmitter protocol | VTX (IRC Tramp) |
| Completeness |
VTX BeastFPV 4.9-5.8GHz 64CH x 1 4.8-6GHz 3DBi RHCP Antenna x 1 6Pin SH1.0 Wire x1 |

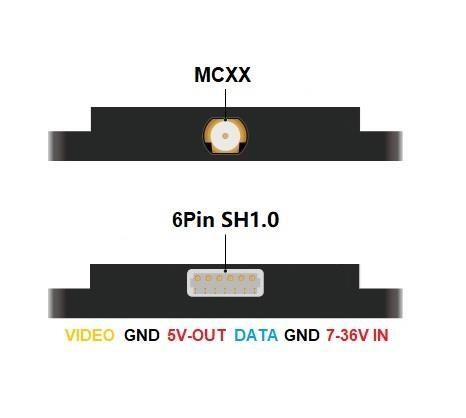

2.Functional diagram
| 7-36V IN | Input voltage 7-36V | DATA | VTX Video Transmitter Control Input (IRC Tramp) | |
| Port | definition | interface | definition | |
| 5V-OUT | Output voltage 5V | VIDEO | Video signal input | |
| GND | Ground wire (Minus) | GND | Ground wire (Minus) |
3. Video transmitter power indicator:
| RF POWER LED | 25mW | 400mW | 800mW | 1500mW | 2500mW | Fault |
| R1 | 1time | 2time | 3time | 4time | 5time |
5.Power adjustment:
This video transmitter has 5 power levels: 25/400/800/1500/2500 mW. To adjust the power, press and hold the button for 6 seconds, after which the video transmitter will go into the power adjustment mode. The power is selected in order by pressing the button once. The number of flashes (blinks) of the red indicator R1 will correspond to the selected power: 1 blink - 25 mW, 2 blinks - 400 mW, etc. (pay attention to: “3. Video transmitter power indicator”). To save the selected power, you must wait 5 seconds, after selecting the power - the video transmitter will save the value. (When adjusting the power of the video transmitter - the red power indicator R1 blinks, and the other indicators go out).
