| 起源の場所: | 中国深Shenzhen |
| ブランド名: | Kimpok |
| 証明: | CE certificate |
| モデル番号: | KP-RFPA900 |

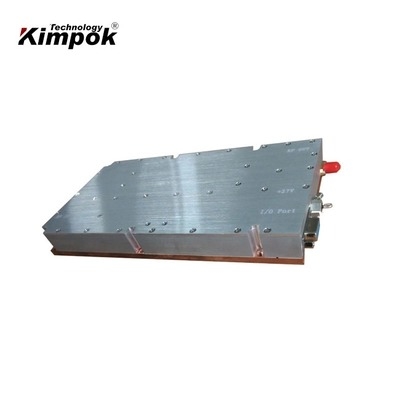

Professional RF linear power amplifier with high gain and output power for long-range applications in the 900-980MHz frequency range.
| Parameter | Value |
|---|---|
| Model Number | KP-RFPA900 |
| Frequency Range | 900-980MHz (customizable) |
| Gain | 50dBi |
| Max RF Output Power | 50dBm /100W |
| Working Voltage | 27VDC (27V-28V) |
| Working Current | 10A |
| RF Connectors | SMA-Female |
| Dimensions | 210×110×25mm |
| Weight | 2kg |
| No. | Item | Specification |
|---|---|---|
| 1 | Frequency Range GSM | 900-980MHz (Customized) |
| 2 | Gain | 50dB |
| 3 | Max RF Output Power | 48.5dBm-50dBm |
| 4 | Input Range | ≤10dBm |
| 5 | Gain Adjust Range | 31dB |
| 6 | Gain Adjust Step | 1dB |
| 7 | In-Band Ripple | 2dB |
| 8 | Input/Output VSWR | Less 1.5 |
| 9 | Working Voltage | 27VDC |
| 10 | Working Current | 75W: 8A 100W: 9.1A |
| 11 | RF Input/Output Ports | SMA-Female |
