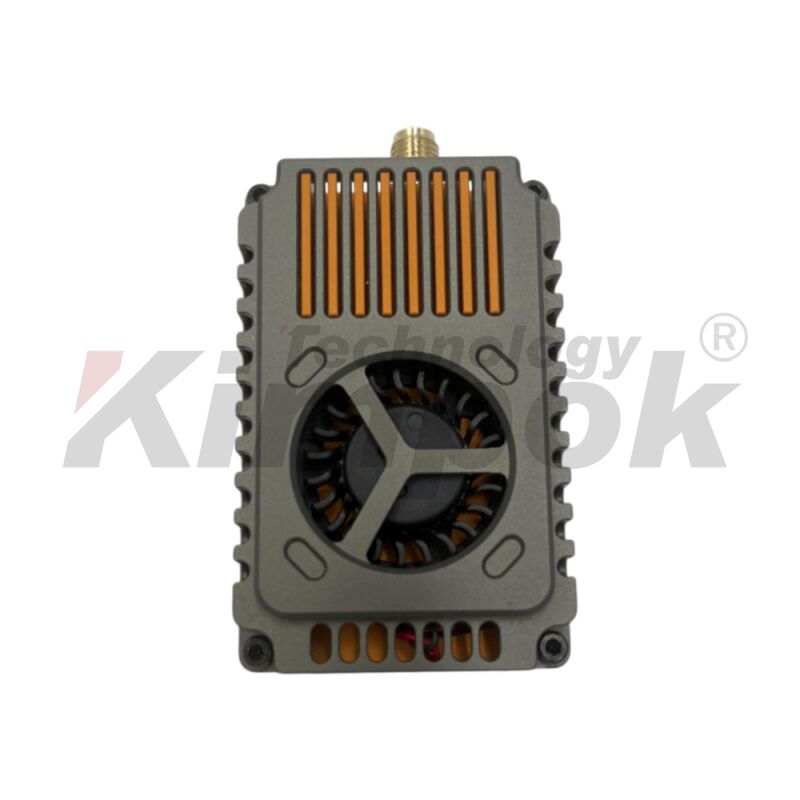

3.3GHz 10W FPV VTX Video Transmitter 16CH 40km Ultra Long Range

Name: 3.3GHz 10W FPV VTX Video Transmitter 16CH 40km Ultra Long Range
Brand: Kimpok Technology Co., Ltd
SKU: KP-T33A10
Price: 145.00 USD
Availability: InStock

製品詳細:

起源の場所:	中国
ブランド名:	Kimpok
証明:	CE Cerfication
モデル番号:	KP-T33A10

詳細情報

起源の場所:

中国

ブランド名:

Kimpok

証明:

CE Cerfication

モデル番号:

KP-T33A10

チャネル:

16 ch

周波数範囲:

3170MHz-3470MHz

電源:

7-36V DC 2-8S

重さ:

16g

周波数帯域分割:

10W（1W/2.5W/5W/7.5W/10W調整をサポート）

取引情報

最小注文数量:

価格:

交渉可能

パッケージの詳細:

国際標準梱包

受渡し時間:

5～7営業日

支払条件:

T/T、L/C、ペイパル

供給の能力:

月あたり4,000個

製品説明

Product Description

10W 3.3GHz 16CH Ultra Light FPV Transmitter for Racing Drone Image Transmission

Key Features

16-channel FPV video transmission transmitter operating at 3.3GHz
Adjustable power output (1W/2.5W/5W/7.5W/10W)
Compatible with 4-8S batteries (15V-36V input)
Ultra-lightweight design at just 16g
Advanced heat dissipation with aluminum alloy shell, heat sink, and fan
Built-in temperature protection (100℃ power reduction, 95℃ recovery)

Technical Specifications

Frequency Range	3.3GHz, 16 channels (3170MHz-3470MHz)
Frequency Band Division	Band A (3330-3470MHz), Band B (3170-3310MHz)
Maximum Power	10W (supports 1W/2.5W/5W/7.5W/10W adjustment)
Input Voltage	DC 15V-36V (supports 4-8S batteries)
Antenna Interface	SMA female-type internal-hole
Intelligent Audio	IRC Tramp
Dimensions	65.8mm × 37.3mm × 19.3mm
Weight	16g
Mounting	20mm × 20mm (hole diameter 2mm)

Product Advantages

Versatile power adjustment for different transmission distances and scenarios
Wide voltage compatibility with mainstream drone batteries for plug-and-play operation
Efficient thermal management prevents overheating and extends product lifespan
Intuitive operation with button controls and clear LED status indicators
Minimal weight impact on racing drone performance

Applications

Ideal for FPV image transmission in racing drones and other small-sized UAVs requiring stable, efficient short-distance video transmission.
