| 起源の場所: | 中国 |
| ブランド名: | Kimpok |
| 証明: | CE Cerfication |
| モデル番号: | KP-DRB04 |

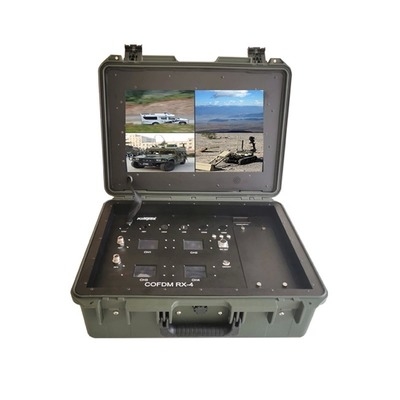

The KP-DRB04 4-Channel COFDM HD Video Transmitter & Receiver is an advanced outdoor wireless AV solution designed for real-time high-definition video monitoring. Featuring 1080P/720P resolution and a built-in 17-inch Samsung LCD monitor, this system supports multi-channel video reception, high-speed mobile NLOS (Non Line-of-Sight) transmission, and secure AES encryption. With modular design and built-in 60GB SSD memory (expandable to 1TB), it ensures continuous 48-hour recording and reliable performance in harsh environments. Ideal for outdoor surveillance, mobile command, and professional video monitoring applications.
| Category | Specification |
|---|---|
| Video Resolution | 1080P / 720P |
| Channels | 4 simultaneous channels |
| Modulation | COFDM 2K |
| Frequency | 300MHz-800MHz / 1.2GHz / 2.4GHz / 5.8GHz (optional) |
| RF Input Level | -105dBm ~ -20dBm |
| RF Interface | N(F) connector |
| Video Output | HDMI / CVBS / HD-SDI (customizable) |
| Data Interface | RS232 / RS485 / TTL, 1200~115200bps |
| Bandwidth | 2 / 2.5 / 4 / 8 MHz (adjustable) |
| Constellation | QPSK, 16QAM |
| FEC Options | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Audio Output | Analog stereo L/R channels |
| Data Encryption | AES 128/256 bits |
| Built-in Memory | 60GB SSD (expandable to 1TB) |
| Battery Capacity | 30,000mAh, supports 4ch 48-hour recording |
| Monitor | 17-inch Samsung LCD |
| Power Supply | AC220V ±20V / DC14-16V |
| Operating Temperature | -30°C to 70°C |
| Size | 520 × 430 × 210 mm |
| Weight | 22 kg |
