| 起源の場所: | 中国 |
| ブランド名: | Kimpok |
| 証明: | CE Cerfication |
| モデル番号: | KP-HSA510 |

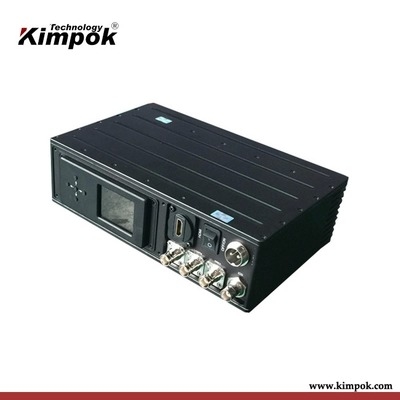

The KP-HSA510 8Km NLOS COFDM HD Wireless Video Transmitter is a professional-grade, low-latency digital video transmitter designed for ultra-reliable wireless transmission in challenging environments. Supporting HDMI, SDI, and CVBS video inputs, it integrates 4th generation COFDM modulation and H.264 encoding to deliver high-definition video with minimal latency. Compact and rugged, this transmitter is ideal for industrial, military, UAV, and mobile applications, offering stable transmission even in non-line-of-sight (NLOS) scenarios.
| Category | Specification |
|---|---|
| Video Input | HDMI / SDI / CVBS (BNC) |
| Video Coding | H.264 |
| Modulation | COFDM 2K |
| Frequency Range | 300MHz-4400MHz (subdivided, 1MHz step, customizable) |
| RF Power | 5-10W adjustable |
| Latency | Standard 300ms, customizable to 100ms end-to-end |
| Encryption | AES user-defined password |
| Bandwidth | 2 / 2.5 / 4 / 8 MHz |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Audio Input | AV |
| Antenna Port | N |
| Dimensions | 230 × 150 × 66 mm |
| Weight | 2.88 kg |
| Transmission Distance | 10-15 km LOS, 5-8 km NLOS, UAV-to-ground up to 200 km |
| Power Supply | DC 11-14V |
